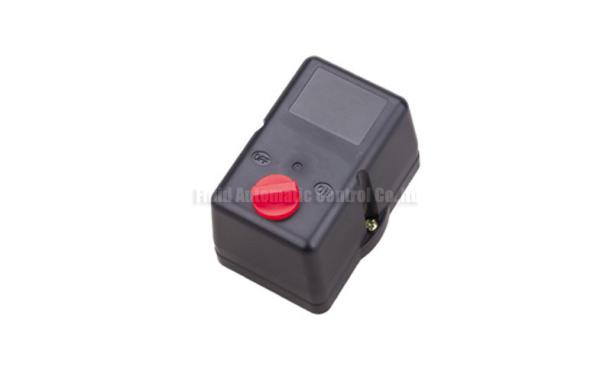

Water Pump Pressure Switches , 250V 16A 1-11Bar Electronic Switch For Air Compressor
AWPS series pressure switch for air compressor and water pump,working pressure 1~11bar,port size 1/4”,1/2”G,PT,NPT e.g AWPS-1/4-1
Quick Detail:
* AWPS series pressure switch for air compressor or water pump
* housing material engineering plastic
* pressure setting can be adjustable for specific application
* reliable electronic switch enable sensitive ON/OFF
* high water-proof class ensure safety working of electronic control
* low power consumption
* stable design,long service life cycle
Applications:
AWPS pressure switches provide time tested, reliable control for automatic water systems. The switch is universally acceptable for use as original equipment on water well pumps or pumping systems. It is available with an On-Off knob for manual cut off the pump.
AWPS pressure switches can also be used to regulate the tank pressure between two preset values on onephase electrically driven air compressors. They are available with an unloader valve, which prevents compressors from starting under load, and it is available with an On-Off knob for manual cut off the compressor.
Specifications:
| MODEL | Min ON (Cut-In)Bar | Max Off | Differential | Factory Setting | Electrical Rating | Pipe Fittings | Contact Arrangement |
| (Cut-Out) Bar | Bar | Bar | Current | Volgage |
| AWPS-1 | 1.0 | 6 | 0.8-3.5 | 2.0-3.0 | 16A | 250A | G1/4" or G1/2" Femle | NC |
| AWPS-2 | 2.0 | 11.0 | 1.0-4.0 | 4.0-5.0 | 16A | 250A | G1/4" or G1/2" Femle | NC |
Air compressor pressure switch,water pump pressure switch,pressure controller
